Pytorch 튜토리얼 - 텐서연산 및 신경망 구성













파이토치(PyTorch)¶

• 페이스북이 초기 루아(Lua) 언어로 개발된 토치(Torch)를 파이썬 버전으로 개발하여 2017년도에 공개
• 초기에 토치(Torch)는 넘파이(NumPy) 라이브러리처럼 과학 연산을 위한 라이브러리로 공개
• 이후 GPU를 이용한 텐서 조작 및 동적 신경망 구축이 가능하도록 딥러닝 프레임워크로 발전시킴
• 파이썬답게 만들어졌고, 유연하면서도 가속화된 계산 속도를 제공





파이토치 모듈 구조¶









출처: Deep Learning with PyTorch by Eli Stevens Luca Antiga. MEAP Publication. https://livebook.manning.com/#!/book/deep-learning-with-pytorch/welcome/v-7/





파이토치의 구성요소¶

• torch: 메인 네임스페이스, 텐서 등의 다양한 수학 함수가 포함
• torch.autograd: 자동 미분 기능을 제공하는 라이브러리
• torch.nn: 신경망 구축을 위한 데이터 구조나 레이어 등의 라이브러리
• torch.multiprocessing: 병럴처리 기능을 제공하는 라이브러리

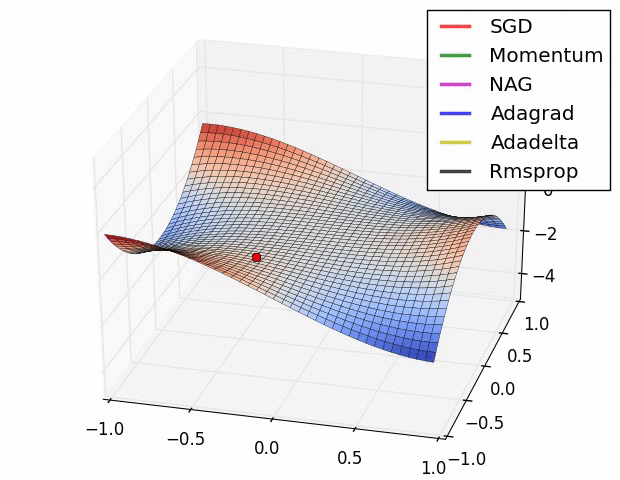

• torch.optim: SGD(Stochastic Gradient Descent)를 중심으로 한 파라미터 최적화 알고리즘 제공
• torch.utils: 데이터 조작 등 유틸리티 기능 제공
• torch.onnx: ONNX(Open Neural Network Exchange), 서로 다른 프레임워크 간의 모델을 공유할 때 사용





텐서(Tensors)¶

• 데이터 표현을 위한 기본 구조로 텐서(tensor)를 사용
• 텐서는 데이터를 담기위한 컨테이너(container)로서 일반적으로 수치형 데이터를 저장
• 넘파이(NumPy)의 ndarray와 유사
• GPU를 사용한 연산 가속 가능







In [ ]:

import torch





텐서 초기화와 데이터 타입¶





초기화 되지 않은 텐서



In [ ]:

t = torch.FloatTensor([0., 1., 2., 3., 4., 5., 6.])
print(t)





tensor([0., 1., 2., 3., 4., 5., 6.])





무작위로 초기화된 텐서



In [ ]:





데이터 타입(dtype)이 long이고, 0으로 채워진 텐서



In [ ]:





사용자가 입력한 값으로 텐서 초기화



In [ ]:

x = 10



In [ ]:





2 x 4 크기, double 타입, 1로 채워진 텐서



In [ ]:





x와 같은 크기, float 타입, 무작위로 채워진 텐서



In [ ]:





텐서의 크기 계산



In [ ]:





데이터 타입(Data Type)¶





Data type	dtype	CPU tensor	GPU tensor
32-bit floating point	torch.float32 or torch.float	torch.FloatTensor	torch.cuda.FloatTensor
64-bit floating point	torch.float64 or torch.double	torch.DoubleTensor	torch.cuda.DoubleTensor
16-bit floating point	torch.float16 or torch.half	torch.HalfTensor	torch.cuda.HalfTensor
8-bit integer(unsinged)	torch.uint8	torch.ByteTensor	torch.cuda.ByteTensor
8-bit integer(singed)	torch.int8	torch.CharTensor	torch.cuda.CharTensor
16-bit integer(signed)	torch.int16 or torch.short	torch.ShortTensor	torch.cuda.ShortTensor
32-bit integer(signed)	torch.int32 or torch.int	torch.IntTensor	torch.cuda.IntTensor
64-bit integer(signed)	torch.int64 or torch.long	torch.LongTensor	torch.cuda.LongTensor



In [ ]:



In [ ]:



In [ ]:



In [ ]:





CUDA Tensors¶

• .to 메소드를 사용하여 텐서를 어떠한 장치(cpu, gpu)로도 옮길 수 있음



In [ ]:

x = torch.randn(1)
print(x)
print(x.item())
print(x.dtype)





tensor([-0.5172])
-0.5171635746955872
torch.float32



In [41]:

device = torch.device('cuda' if torch.cuda. is_available() else 'cpu')
print(device)
y = torch.ones_like(x, device = device)
print(y)
x = x.to(device)
print(x)
z = x + y
print(z)
print(z.to('cpu', torch.double))





cpu



---------------------------------------------------------------------------
NameError                                 Traceback (most recent call last)
<ipython-input-41-1cae97758f4a> in <cell line: 3>()
      1 device = torch.device('cuda' if torch.cuda. is_available() else 'cpu')
      2 print(device)
----> 3 y = torch.ones_like(x, device = device)
      4 print(y)
      5 x = x.to(device)

NameError: name 'x' is not defined





다차원 텐서 표현¶





0D Tensor(Scalar)

• 하나의 숫자를 담고 있는 텐서(tensor)
• 축과 형상이 없음



In [ ]:

t0 = torch.tensor(0)
print(t0.ndim)
print(t0.shape)
print(t0)





0
torch.Size([])
tensor(0)





1D Tensor(Vector)

• 값들을 저장한 리스트와 유사한 텐서
• 하나의 축이 존재



In [ ]:

t1 = torch.tensor([1, 2, 3])
print(t1.ndim)
print(t1.shape)
print(t1)





1
torch.Size([3])
tensor([1, 2, 3])





2D Tensor(Matrix)

• 행렬과 같은 모양으로 두개의 축이 존재
• 일반적인 수치, 통계 데이터셋이 해당
• 주로 샘플(samples)과 특성(features)을 가진 구조로 사용







In [ ]:

t2 = torch.tensor([[1, 2, 3],
                   [4, 5, 6],
                   [7, 8, 9]])
print(t2.ndim)
print(t2.shape)
print(t2)





2
torch.Size([3, 3])
tensor([[1, 2, 3],
        [4, 5, 6],
        [7, 8, 9]])





3D Tensor

• 큐브(cube)와 같은 모양으로 세개의 축이 존재
• 데이터가 연속된 시퀀스 데이터나 시간 축이 포함된 시계열 데이터에 해당
• 주식 가격 데이터셋, 시간에 따른 질병 발병 데이터 등이 존재
• 주로 샘플(samples), 타임스텝(timesteps), 특성(features)을 가진 구조로 사용







In [ ]:





4D Tensor

• 4개의 축
• 컬러 이미지 데이터가 대표적인 사례 (흑백 이미지 데이터는 3D Tensor로 가능)
• 주로 샘플(samples), 높이(height), 너비(width), 컬러 채널(channel)을 가진 구조로 사용









5D Tensor

• 5개의 축
• 비디오 데이터가 대표적인 사례
• 주로 샘플(samples), 프레임(frames), 높이(height), 너비(width), 컬러 채널(channel)을 가진 구조로 사용





텐서의 연산(Operations)¶

• 텐서에 대한 수학 연산, 삼각함수, 비트 연산, 비교 연산, 집계 등 제공



In [ ]:

import math

a = torch.rand(1, 2) * 2 - 1
print(a)
print(torch.abs(a))
print(torch.ceil(a))
print(torch.floor(a))
print(torch.clamp(a, -0.5, 0.5))





tensor([[-0.7389, -0.0339]])
tensor([[0.7389, 0.0339]])
tensor([[-0., -0.]])
tensor([[-1., -1.]])
tensor([[-0.5000, -0.0339]])



In [ ]:

print(a)
print(torch.min(a))
print(torch.max(a))
print(torch.mean(a))
print(torch.std(a))
print(torch.prod(a))
print(torch.unique(torch.tensor([1, 2, 3, 1, 2, 3])))





tensor([[-0.7389, -0.0339]])
tensor(-0.7389)
tensor(-0.0339)
tensor(-0.3864)
tensor(0.4986)
tensor(0.0250)
tensor([1, 2, 3])





max와 min은 dim 인자를 줄 경우 argmax와 argmin도 함께 리턴

• argmax: 최대값을 가진 인덱스
• argmin: 최소값을 가진 인덱스



In [ ]:

x = torch.rand(2, 2)
print(x)
print(x.max(dim=0))
print(x.max(dim=1))





tensor([[0.7870, 0.3448],
        [0.5940, 0.6871]])
torch.return_types.max(
values=tensor([0.7870, 0.6871]),
indices=tensor([0, 1]))
torch.return_types.max(
values=tensor([0.7870, 0.6871]),
indices=tensor([0, 1]))



In [ ]:

print(x)
print(x.min(dim=0))
print(x.min(dim=1))





tensor([[0.7870, 0.3448],
        [0.5940, 0.6871]])
torch.return_types.min(
values=tensor([0.5940, 0.3448]),
indices=tensor([1, 0]))
torch.return_types.min(
values=tensor([0.3448, 0.5940]),
indices=tensor([1, 0]))



In [ ]:

x = torch.rand(2, 2)
print(x)
y = torch.rand(2, 2)
print(y)





tensor([[0.9778, 0.2322],
        [0.9288, 0.9593]])
tensor([[0.4161, 0.8909],
        [0.9978, 0.6027]])





torch.add: 덧셈



In [ ]:

print(x + y)
print(torch.add(x, y))





tensor([[1.3939, 1.1232],
        [1.9266, 1.5620]])
tensor([[1.3939, 1.1232],
        [1.9266, 1.5620]])





결과 텐서를 인자로 제공



In [ ]:

result = torch.empty(2, 4)
torch.add(x, y, out=result)
print(result)





tensor([[1.3939, 1.1232],
        [1.9266, 1.5620]])



C:\Users\xodus\AppData\Local\Temp\ipykernel_36412\2363212739.py:2: UserWarning: An output with one or more elements was resized since it had shape [2, 4], which does not match the required output shape [2, 2]. This behavior is deprecated, and in a future PyTorch release outputs will not be resized unless they have zero elements. You can explicitly reuse an out tensor t by resizing it, inplace, to zero elements with t.resize_(0). (Triggered internally at C:\actions-runner\_work\pytorch\pytorch\builder\windows\pytorch\aten\src\ATen\native\Resize.cpp:35.)
  torch.add(x, y, out=result)





in-place 방식

• in-place방식으로 텐서의 값을 변경하는 연산 뒤에는 _''가 붙음
• x.copy_(y), x.t_()



In [ ]:

print(x)
print(y)
y.add_(x)
print(y)





tensor([[0.9778, 0.2322],
        [0.9288, 0.9593]])
tensor([[0.4161, 0.8909],
        [0.9978, 0.6027]])
tensor([[1.3939, 1.1232],
        [1.9266, 1.5620]])





torch.sub: 뺄셈



In [ ]:

print(x)
print(y)
print(x - y)
print(torch.sub(x, y))
print(x.sub(y))





tensor([[0.9778, 0.2322],
        [0.9288, 0.9593]])
tensor([[1.3939, 1.1232],
        [1.9266, 1.5620]])
tensor([[-0.4161, -0.8909],
        [-0.9978, -0.6027]])
tensor([[-0.4161, -0.8909],
        [-0.9978, -0.6027]])
tensor([[-0.4161, -0.8909],
        [-0.9978, -0.6027]])





torch.mul: 곱셉



In [ ]:

print(x)
print(y)
print(x * y)
print(torch.mul(x, y))
print(x.mul(y))





tensor([[0.9778, 0.2322],
        [0.9288, 0.9593]])
tensor([[1.3939, 1.1232],
        [1.9266, 1.5620]])
tensor([[1.3629, 0.2608],
        [1.7893, 1.4984]])
tensor([[1.3629, 0.2608],
        [1.7893, 1.4984]])
tensor([[1.3629, 0.2608],
        [1.7893, 1.4984]])





torch.div: 나눗셈



In [ ]:

print(x)
print(y)
print(x / y)
print(torch.div(x, y))
print(x.div(y))





tensor([[0.9778, 0.2322],
        [0.9288, 0.9593]])
tensor([[1.3939, 1.1232],
        [1.9266, 1.5620]])
tensor([[0.7015, 0.2068],
        [0.4821, 0.6142]])
tensor([[0.7015, 0.2068],
        [0.4821, 0.6142]])
tensor([[0.7015, 0.2068],
        [0.4821, 0.6142]])





torch.mm: 내적(dot product)



In [ ]:

print(x)
print(y)
print(torch.matmul(x, y))
z = torch.mm(x, y)
print(z)
print(torch.svd(z))





tensor([[0.9778, 0.2322],
        [0.9288, 0.9593]])
tensor([[1.3939, 1.1232],
        [1.9266, 1.5620]])
tensor([[1.8103, 1.4609],
        [3.1428, 2.5416]])
tensor([[1.8103, 1.4609],
        [3.1428, 2.5416]])
torch.return_types.svd(
U=tensor([[-0.4988, -0.8667],
        [-0.8667,  0.4988]]),
S=tensor([4.6635e+00, 2.0650e-03]),
V=tensor([[-0.7777, -0.6286],
        [-0.6286,  0.7777]]))





텐서의 조작(Manipulations)¶





인덱싱(Indexing): NumPy처럼 인덱싱 형태로 사용가능



In [ ]:

x = torch.Tensor([[1, 2],
                  [3, 4]])
print(x)
print(x[0, 0])
print(x[0, 1])
print(x[1, 0])
print(x[1, 1])

print(x[:, 0])
print(x[:, 1])
print(x[0, :])
print(x[1, :])





tensor([[1., 2.],
        [3., 4.]])
tensor(1.)
tensor(2.)
tensor(3.)
tensor(4.)
tensor([1., 3.])
tensor([2., 4.])
tensor([1., 2.])
tensor([3., 4.])





view: 텐서의 크기(size)나 모양(shape)을 변경

• 기본적으로 변경 전과 후에 텐서 안의 원소 개수가 유지되어야 함
• -1로 설정되면 계산을 통해 해당 크기값을 유추



In [ ]:

x = torch.randn(4, 5)
print(x)
y = x.view(20)
print(y)
z = x.view(5, -1)
print(z)





tensor([[ 1.3183,  0.4399,  0.4315,  0.7125, -0.4232],
        [ 0.3619, -1.0817, -0.5947, -0.5867,  0.4631],
        [-2.2517,  0.8459,  1.5883, -0.3597, -0.1833],
        [-1.4298, -0.5841, -1.0301, -0.6693,  0.1959]])
tensor([ 1.3183,  0.4399,  0.4315,  0.7125, -0.4232,  0.3619, -1.0817, -0.5947,
        -0.5867,  0.4631, -2.2517,  0.8459,  1.5883, -0.3597, -0.1833, -1.4298,
        -0.5841, -1.0301, -0.6693,  0.1959])
tensor([[ 1.3183,  0.4399,  0.4315,  0.7125],
        [-0.4232,  0.3619, -1.0817, -0.5947],
        [-0.5867,  0.4631, -2.2517,  0.8459],
        [ 1.5883, -0.3597, -0.1833, -1.4298],
        [-0.5841, -1.0301, -0.6693,  0.1959]])





item: 텐서에 값이 단 하나라도 존재하면 숫자값을 얻을 수 있음



In [ ]:

x = torch.rand(1)
print(x)
print(x.item())
print(x.dtype)





tensor([0.5269])
0.5268673896789551
torch.float32





스칼라값 하나만 존재해야 item() 사용 가능



In [ ]:





tensor([0.6151, 0.8299])



---------------------------------------------------------------------------
RuntimeError                              Traceback (most recent call last)
Cell In[24], line 3
      1 x = torch.rand(2)
      2 print(x)
----> 3 print(x.item())
      4 print(x.dtype)

RuntimeError: a Tensor with 2 elements cannot be converted to Scalar





squeeze: 차원을 축소(제거)



In [ ]:

tensor = torch.rand(1, 3, 3)
print(tensor)
print(tensor.shape)





tensor([[[0.9809, 0.5227, 0.9596],
         [0.2491, 0.3174, 0.0162],
         [0.4459, 0.2969, 0.0172]]])
torch.Size([1, 3, 3])



In [ ]:

t = tensor.squeeze()
print(t)
print(t.shape)





tensor([[0.9809, 0.5227, 0.9596],
        [0.2491, 0.3174, 0.0162],
        [0.4459, 0.2969, 0.0172]])
torch.Size([3, 3])





unsqueeze: 차원을 증가(생성)



In [ ]:

t = torch.rand(3, 3)
print(t)
print(t.shape)





tensor([[0.7453, 0.8929, 0.4483],
        [0.2229, 0.6966, 0.1367],
        [0.0719, 0.9958, 0.3260]])
torch.Size([3, 3])



In [ ]:

tensor = t.unsqueeze(dim=0)
print(tensor)
print(tensor.shape)





tensor([[[0.7453, 0.8929, 0.4483],
         [0.2229, 0.6966, 0.1367],
         [0.0719, 0.9958, 0.3260]]])
torch.Size([1, 3, 3])



In [ ]:

tensor = t.unsqueeze(dim=2)
print(tensor)
print(tensor.shape)





tensor([[[0.7453],
         [0.8929],
         [0.4483]],

        [[0.2229],
         [0.6966],
         [0.1367]],

        [[0.0719],
         [0.9958],
         [0.3260]]])
torch.Size([3, 3, 1])





stack: 텐서간 결합



In [ ]:

x = torch.FloatTensor([1, 4])
print(x)
y = torch.FloatTensor([2, 5])
print(y)
z = torch.FloatTensor([3, 6])
print(z)

print(torch.stack([x, y, z]))





tensor([1., 4.])
tensor([2., 5.])
tensor([3., 6.])
tensor([[1., 4.],
        [2., 5.],
        [3., 6.]])





cat: 텐서를 결합하는 메소드(concatenate)

• 넘파이의 stack과 유사하지만, 쌓을 dim이 존재해야함
• 해당 차원을 늘려준 후 결합



In [ ]:

a = torch.randn(1, 3, 3)
print(a)
b = torch.randn(1, 3, 3)
print(b)
c = torch.cat((a, b), dim=0)
print(c)
print(c.size())





tensor([[[ 0.9720,  0.5302,  0.3912],
         [-0.3124, -0.6052,  0.6506],
         [ 2.0312,  0.1410, -0.0298]]])
tensor([[[-1.1560, -0.2555,  1.0128],
         [ 0.7819,  0.3953,  1.7806],
         [-1.0710,  0.2716, -1.2741]]])
tensor([[[ 0.9720,  0.5302,  0.3912],
         [-0.3124, -0.6052,  0.6506],
         [ 2.0312,  0.1410, -0.0298]],

        [[-1.1560, -0.2555,  1.0128],
         [ 0.7819,  0.3953,  1.7806],
         [-1.0710,  0.2716, -1.2741]]])
torch.Size([2, 3, 3])



In [ ]:

c = torch.cat((a, b), dim=1)
print(c)
print(c.size())





tensor([[[ 0.9720,  0.5302,  0.3912],
         [-0.3124, -0.6052,  0.6506],
         [ 2.0312,  0.1410, -0.0298],
         [-1.1560, -0.2555,  1.0128],
         [ 0.7819,  0.3953,  1.7806],
         [-1.0710,  0.2716, -1.2741]]])
torch.Size([1, 6, 3])



In [ ]:

c = torch.cat((a, b), dim=2)
print(c)
print(c.size())





tensor([[[ 0.9720,  0.5302,  0.3912, -1.1560, -0.2555,  1.0128],
         [-0.3124, -0.6052,  0.6506,  0.7819,  0.3953,  1.7806],
         [ 2.0312,  0.1410, -0.0298, -1.0710,  0.2716, -1.2741]]])
torch.Size([1, 3, 6])





chunk: 텐서를 여러 개로 나눌 때 사용 (몇 개로 나눌 것인가?)



In [ ]:

tensor = torch.rand(3, 6)
print(tensor)

t1, t2, t3 = torch.chunk(tensor, 3, dim=1)
print(t1)
print(t2)
print(t3)





tensor([[0.9582, 0.5981, 0.6283, 0.6279, 0.8309, 0.7105],
        [0.9168, 0.6787, 0.3635, 0.7603, 0.0968, 0.7248],
        [0.5706, 0.6225, 0.7284, 0.8518, 0.3439, 0.8861]])
tensor([[0.9582, 0.5981],
        [0.9168, 0.6787],
        [0.5706, 0.6225]])
tensor([[0.6283, 0.6279],
        [0.3635, 0.7603],
        [0.7284, 0.8518]])
tensor([[0.8309, 0.7105],
        [0.0968, 0.7248],
        [0.3439, 0.8861]])





split: chunk와 동일한 기능이지만 조금 다름 (텐서의 크기는 몇인가?)



In [ ]:

tensor = torch.rand(3, 6)
t1, t2 = torch.split(tensor, 3, dim=1)

print(tensor)
print(t1)
print(t2)





tensor([[0.6629, 0.7750, 0.7590, 0.0481, 0.2992, 0.2832],
        [0.4073, 0.6713, 0.6036, 0.0977, 0.4953, 0.0680],
        [0.4750, 0.0259, 0.5710, 0.3239, 0.5928, 0.6802]])
tensor([[0.6629, 0.7750, 0.7590],
        [0.4073, 0.6713, 0.6036],
        [0.4750, 0.0259, 0.5710]])
tensor([[0.0481, 0.2992, 0.2832],
        [0.0977, 0.4953, 0.0680],
        [0.3239, 0.5928, 0.6802]])





torch ↔ numpy

• Torch Tensor(텐서)를 NumPy array(배열)로 변환 가능
  • numpy()
  • from_numpy()
• Tensor가 CPU상에 있다면 NumPy 배열은 메모리 공간을 공유하므로 하나가 변하면, 다른 하나도 변함



In [ ]:

a = torch.ones(7)
print(a)





tensor([1., 1., 1., 1., 1., 1., 1.])



In [ ]:

b = a.numpy()
print(b)





[1. 1. 1. 1. 1. 1. 1.]



In [ ]:

a.add_(1)
print(a)
print(b)





tensor([2., 2., 2., 2., 2., 2., 2.])
[2. 2. 2. 2. 2. 2. 2.]



In [ ]:

import numpy as np

a = np.ones(7)
b = torch.from_numpy(a)
np.add(a, 1, out=a)
print(a)
print(b)





[2. 2. 2. 2. 2. 2. 2.]
tensor([2., 2., 2., 2., 2., 2., 2.], dtype=torch.float64)



In [ ]:





Autograd(자동미분)¶

• torch.autograd 패키지는 Tensor의 모든 연산에 대해 자동 미분 제공
• 이는 코드를 어떻게 작성하여 실행하느냐에 따라 역전파가 정의된다는 뜻
• backprop를 위해 미분값을 자동으로 계산





requires_grad 속성을 True로 설정하면, 해당 텐서에서 이루어지는 모든 연산들을 추적하기 시작

기록을 추적하는 것을 중단하게 하려면, .detach()를 호출하여 연산기록으로부터 분리



In [ ]:



In [ ]:

a = torch.randn(3, 3)
a = a * 3
print(a)
print(a.requires_grad)





tensor([[-4.2719,  1.3259, -0.3379],
        [ 6.9943,  2.0913,  1.3107],
        [ 2.7305,  0.7880, -2.9714]])
False





requires_grad_(...)는 기존 텐서의 requires_grad 값을 바꿔치기(in-place)하여 변경

grad_fn: 미분값을 계산한 함수에 대한 정보 저장 (어떤 함수에 대해서 backprop 했는지)



In [ ]:

a.requires_grad_(True)
print(a.requires_grad)

b = (a * a).sum()
print(b)
print(b.grad_fn)





True
tensor(92.0392, grad_fn=<SumBackward0>)
<SumBackward0 object at 0x0000019C1347E770>





기울기(Gradient)¶



In [ ]:

x = torch.ones(3, 3, requires_grad=True)
print(x)





tensor([[1., 1., 1.],
        [1., 1., 1.],
        [1., 1., 1.]], requires_grad=True)



In [ ]:

y = x + 5
print(y)





tensor([[6., 6., 6.],
        [6., 6., 6.],
        [6., 6., 6.]], grad_fn=<AddBackward0>)



In [ ]:

z = y * y
out = z.mean()
print(z, out)





tensor([[36., 36., 36.],
        [36., 36., 36.],
        [36., 36., 36.]], grad_fn=<MulBackward0>) tensor(36., grad_fn=<MeanBackward0>)





계산이 완료된 후, .backward()를 호출하면 자동으로 역전파 계산이 가능하고, .grad 속성에 누적됨



In [ ]:

print(out)
out.backward()





tensor(36., grad_fn=<MeanBackward0>)





grad: data가 거쳐온 layer에 대한 미분값 저장



In [ ]:

print(x)
print(x.grad)





tensor([[1., 1., 1.],
        [1., 1., 1.],
        [1., 1., 1.]], requires_grad=True)
tensor([[1.3333, 1.3333, 1.3333],
        [1.3333, 1.3333, 1.3333],
        [1.3333, 1.3333, 1.3333]])



In [ ]:

x = torch.randn(3, requires_grad=True)

y = x * 2
while y.data.norm() < 1000:
  y = y * 2
print(y)





tensor([ 924.5911, -436.0419,  840.3173], grad_fn=<MulBackward0>)



In [ ]:

v = torch.tensor([0.1, 1.0, 0.0001], dtype=torch.float)
y.backward(v)
print(x.grad)





tensor([1.0240e+02, 1.0240e+03, 1.0240e-01])





with torch.no_grad()를 사용하여 기울기의 업데이트를 하지 않음

기록을 추적하는 것을 방지하기 위해 코드 블럭을 with torch.no_grad()로 감싸면 기울기 계산은 필요없지만, requires_grad=True로 설정되어 학습 가능한 매개변수를 갖는 모델을 평가(evaluate)할 때 유용



In [ ]:

print(x.requires_grad)
print((x ** 2).requires_grad)

with torch.no_grad():
  print((x ** 2).requires_grad)





True
True
False





detach(): 내용물(content)은 같지만 require_grad가 다른 새로운 Tensor를 가져올 때



In [ ]:

print(x.requires_grad)
y = x.detach()
print(y.requires_grad)
print(x.eq(y).all())





True
False
tensor(True)





자동 미분 흐름 예제¶

• 계산 흐름 $a \rightarrow b \rightarrow c \rightarrow out $

$\quad \frac{\partial out}{\partial a} = ?$¶

• backward()를 통해 $a \leftarrow b \leftarrow c \leftarrow out $을 계산하면 $\frac{\partial out}{\partial a}$값이 a.grad에 채워짐



In [ ]:

a = torch.ones(2, 2)
print(a)





tensor([[1., 1.],
        [1., 1.]])



In [ ]:

a = torch.ones(2, 2, requires_grad=True)
print(a)





tensor([[1., 1.],
        [1., 1.]], requires_grad=True)



In [ ]:

print(a.data)
print(a.grad)
print(a.grad_fn)





tensor([[1., 1.],
        [1., 1.]])
None
None





$b = a + 2$



In [ ]:

b = a + 2
print(b)





tensor([[3., 3.],
        [3., 3.]], grad_fn=<AddBackward0>)





$c = b^2$



In [ ]:

c = b ** 2
print(c)





tensor([[9., 9.],
        [9., 9.]], grad_fn=<PowBackward0>)



In [ ]:

out = c.sum()
print(out)





tensor(36., grad_fn=<SumBackward0>)



In [ ]:

print(out)
out.backward()





tensor(36., grad_fn=<SumBackward0>)





a의 grad_fn이 None인 이유는 직접적으로 계산한 부분이 없었기 때문



In [ ]:

print(a.data)
print(a.grad)
print(a.grad_fn)





tensor([[1., 1.],
        [1., 1.]])
tensor([[6., 6.],
        [6., 6.]])
None



In [ ]:

print(b.data)
print(b.grad)
print(b.grad_fn)





tensor([[3., 3.],
        [3., 3.]])
None
<AddBackward0 object at 0x0000019C7DCD14B0>



C:\Users\xodus\AppData\Local\Temp\ipykernel_36412\2485455394.py:2: UserWarning: The .grad attribute of a Tensor that is not a leaf Tensor is being accessed. Its .grad attribute won't be populated during autograd.backward(). If you indeed want the .grad field to be populated for a non-leaf Tensor, use .retain_grad() on the non-leaf Tensor. If you access the non-leaf Tensor by mistake, make sure you access the leaf Tensor instead. See github.com/pytorch/pytorch/pull/30531 for more informations. (Triggered internally at C:\actions-runner\_work\pytorch\pytorch\builder\windows\pytorch\build\aten\src\ATen/core/TensorBody.h:494.)
  print(b.grad)



In [ ]:

print(out.data)
print(out.grad)
print(out.grad_fn)





tensor(36.)
None
<SumBackward0 object at 0x0000019C7DCD2110>



C:\Users\xodus\AppData\Local\Temp\ipykernel_36412\578081240.py:2: UserWarning: The .grad attribute of a Tensor that is not a leaf Tensor is being accessed. Its .grad attribute won't be populated during autograd.backward(). If you indeed want the .grad field to be populated for a non-leaf Tensor, use .retain_grad() on the non-leaf Tensor. If you access the non-leaf Tensor by mistake, make sure you access the leaf Tensor instead. See github.com/pytorch/pytorch/pull/30531 for more informations. (Triggered internally at C:\actions-runner\_work\pytorch\pytorch\builder\windows\pytorch\build\aten\src\ATen/core/TensorBody.h:494.)
  print(out.grad)



In [ ]:





데이터 준비¶

파이토치에서는 데이터 준비를 위해 torch.utils.data의 Dataset과 DataLoader 사용 가능

• Dataset에는 다양한 데이터셋이 존재 (MNIST, FashionMNIST, CIFAR10, ...)
  • Vision Dataset: https://pytorch.org/vision/stable/datasets.html
  • Text Dataset: https://pytorch.org/text/stable/datasets.html
  • Audio Dataset: https://pytorch.org/audio/stable/datasets.html
• DataLoader와 Dataset을 통해 batch_size, train 여부, transform 등을 인자로 넣어 데이터를 어떻게 load할 것인지 정해줄 수 있음



In [1]:

import torch
import numpy as np
from torch.utils.data import Dataset, DataLoader











토치비전(torchvision)은 파이토치에서 제공하는 데이터셋들이 모여있는 패키지

• transforms: 전처리할 때 사용하는 메소드 (https://pytorch.org/docs/stable/torchvision/transforms.html)
• transforms에서 제공하는 클래스 이외는 일반적으로 클래스를 따로 만들어 전처리 단계를 진행



In [2]:

import torchvision.transforms as transforms
from torchvision import datasets





DataLoader의 인자로 들어갈 transform을 미리 정의할 수 있고, Compose를 통해 리스트 안에 순서대로 전처리 진행

ToTensor()를 하는 이유는 torchvision이 PIL Image 형태로만 입력을 받기 때문에 데이터 처리를 위해서 Tensor형으로 변환 필요



In [3]:

mnist_transform = transforms.Compose([transforms.ToTensor(),
                                      transforms.Normalize(mean=(0.5,),std=(1.0,))])



In [4]:

trainset = datasets.MNIST(root='/content/',
                          train=True, download=True,
                          transform=mnist_transform)
testset = datasets.MNIST(root='/content/',
                          train=False, download=True,
                          transform=mnist_transform)





Downloading http://yann.lecun.com/exdb/mnist/train-images-idx3-ubyte.gz
Failed to download (trying next):
HTTP Error 403: Forbidden

Downloading https://ossci-datasets.s3.amazonaws.com/mnist/train-images-idx3-ubyte.gz
Downloading https://ossci-datasets.s3.amazonaws.com/mnist/train-images-idx3-ubyte.gz to /content/MNIST/raw/train-images-idx3-ubyte.gz



100%|██████████| 9912422/9912422 [00:03<00:00, 2557454.31it/s]



Extracting /content/MNIST/raw/train-images-idx3-ubyte.gz to /content/MNIST/raw

Downloading http://yann.lecun.com/exdb/mnist/train-labels-idx1-ubyte.gz
Failed to download (trying next):
HTTP Error 403: Forbidden

Downloading https://ossci-datasets.s3.amazonaws.com/mnist/train-labels-idx1-ubyte.gz
Downloading https://ossci-datasets.s3.amazonaws.com/mnist/train-labels-idx1-ubyte.gz to /content/MNIST/raw/train-labels-idx1-ubyte.gz



100%|██████████| 28881/28881 [00:00<00:00, 507791.50it/s]



Extracting /content/MNIST/raw/train-labels-idx1-ubyte.gz to /content/MNIST/raw

Downloading http://yann.lecun.com/exdb/mnist/t10k-images-idx3-ubyte.gz
Failed to download (trying next):
HTTP Error 403: Forbidden

Downloading https://ossci-datasets.s3.amazonaws.com/mnist/t10k-images-idx3-ubyte.gz
Downloading https://ossci-datasets.s3.amazonaws.com/mnist/t10k-images-idx3-ubyte.gz to /content/MNIST/raw/t10k-images-idx3-ubyte.gz



100%|██████████| 1648877/1648877 [00:00<00:00, 4488439.88it/s]



Extracting /content/MNIST/raw/t10k-images-idx3-ubyte.gz to /content/MNIST/raw

Downloading http://yann.lecun.com/exdb/mnist/t10k-labels-idx1-ubyte.gz
Failed to download (trying next):
HTTP Error 403: Forbidden

Downloading https://ossci-datasets.s3.amazonaws.com/mnist/t10k-labels-idx1-ubyte.gz
Downloading https://ossci-datasets.s3.amazonaws.com/mnist/t10k-labels-idx1-ubyte.gz to /content/MNIST/raw/t10k-labels-idx1-ubyte.gz



100%|██████████| 4542/4542 [00:00<00:00, 3811630.41it/s]



Extracting /content/MNIST/raw/t10k-labels-idx1-ubyte.gz to /content/MNIST/raw







DataLoader는 데이터 전체를 보관했다가 실제 모델 학습을 할 때 batch_size 크기만큼 데이터를 가져옴



In [5]:

train_loader = DataLoader(trainset, batch_size=8, shuffle=True, num_workers=2)
testloader = DataLoader(testset, batch_size=8, shuffle=False, num_workers=2)



In [6]:

dataiter = iter(train_loader)
images, labels = next(dataiter)
images.shape, labels.shape



Out[6]:

(torch.Size([8, 1, 28, 28]), torch.Size([8]))



In [7]:

torch_image = torch.squeeze(images[0])
torch_image.shape



Out[7]:

torch.Size([28, 28])



In [8]:

import matplotlib.pyplot as plt
figure = plt.figure(figsize=(12, 6))
cols, rows = 4, 2
for i in range(1, cols * rows + 1):
  sample_idx = torch.randint(len(trainset), size=(1,)).item()
  img, label = trainset[sample_idx]
  figure.add_subplot(rows, cols, i)
  plt.title(label)
  plt.axis('off')
  plt.imshow(img.squeeze(), cmap='gray')
  plt.show()























신경망 구성¶

• 레이어(layer): 신경망의 핵심 데이터 구조로 하나 이상의 텐서를 입력받아 하나 이상의 텐서를 출력
• 모듈(module): 한 개 이상의 계층이 모여서 구성
• 모델(model): 한 개 이상의 모듈이 모여서 구성





torch.nn 패키지¶

주로 가중치(weights), 편향(bias)값들이 내부에서 자동으로 생성되는 레이어들을 사용할 때 사용 (weight값들을 직접 선언 안함)

https://pytorch.org/docs/stable/nn.html



In [9]:

import torch
import matplotlib.pyplot as plt
import torch.nn as nn
import numpy as np





nn.Linear 계층 예제



In [10]:

input = torch.randn(128, 20)
print(input)

m = nn.Linear(20, 30)
print(m)

output = m(input)
print(output)
print(output.size())





tensor([[ 0.1611, -0.1770,  0.9294,  ..., -1.3216,  1.1687,  0.7508],
        [ 0.0091,  0.2195, -0.1656,  ...,  1.5742, -0.1580, -0.6254],
        [-0.0739,  0.4897, -0.3660,  ...,  2.4579,  0.1372,  0.7276],
        ...,
        [-0.3231,  1.0198, -1.8128,  ..., -0.3414, -0.1527,  0.0857],
        [ 0.2109, -1.0355,  0.2443,  ...,  1.2963, -1.0275,  0.9258],
        [-2.5506,  0.8304,  1.2549,  ..., -0.7072,  1.2520, -0.8628]])
Linear(in_features=20, out_features=30, bias=True)
tensor([[ 0.9625, -0.8421, -0.2202,  ..., -0.6258, -0.4394, -0.1915],
        [-0.9019,  0.1840, -0.6796,  ...,  1.5266, -0.2464, -0.8951],
        [-0.2721, -0.2364,  0.2282,  ...,  0.3653,  0.5424, -1.0521],
        ...,
        [-0.1131, -0.7157, -0.3249,  ..., -0.2302,  0.4510, -0.3833],
        [ 0.9199, -0.7164,  0.2842,  ..., -1.1771,  0.0924,  0.3473],
        [-0.6566,  1.4463,  0.9695,  ...,  0.8163,  0.6002,  0.5698]],
       grad_fn=<AddmmBackward0>)
torch.Size([128, 30])





nn.Conv2d 계층 예시



In [11]:

input = torch.rand(20, 16, 50, 100)
print(input.size())





torch.Size([20, 16, 50, 100])



In [12]:

m = nn.Conv2d(16, 33, 3, stride=2)
print(m)
m = nn.Conv2d(16, 33, (3, 5), stride=(2, 2), padding=(4,2))
print(m)
m = nn.Conv2d(16, 33, (3, 5), stride=(2, 2), padding=(4,2), dilation=(3, 1))
print(m)





Conv2d(16, 33, kernel_size=(3, 3), stride=(2, 2))
Conv2d(16, 33, kernel_size=(3, 5), stride=(2, 2), padding=(4, 2))
Conv2d(16, 33, kernel_size=(3, 5), stride=(2, 2), padding=(4, 2), dilation=(3, 1))



In [13]:

output = m(input)
print(output.size())





torch.Size([20, 33, 26, 50])





컨볼루션 레이어(Convolution Layers)¶

nn.Conv2d 예제

• in_channels: channel의 갯수
• out_channels: 출력 채널의 갯수
• kernel_size: 커널(필터) 사이즈



In [14]:

nn.Conv2d(in_channels=1, out_channels=20, kernel_size=5, stride=1)



Out[14]:

Conv2d(1, 20, kernel_size=(5, 5), stride=(1, 1))



In [15]:

layer = nn.Conv2d(1, 20, 5, 1).to(torch.device('cpu'))
layer



Out[15]:

Conv2d(1, 20, kernel_size=(5, 5), stride=(1, 1))





weight 확인



In [16]:

weight = layer.weight
weight.shape



Out[16]:

torch.Size([20, 1, 5, 5])





weight는 detach()를 통해 꺼내줘야 numpy()변환이 가능



In [17]:

weight = weight.detach()



In [18]:

weight = weight.numpy()
weight.shape



Out[18]:

(20, 1, 5, 5)



In [19]:

plt.imshow(weight[0, 0, :, :], 'jet')
plt.colorbar()
plt.show()







In [20]:

print(images.shape)
print(images[0].size())

input_image = torch.squeeze(images[0])
print(input_image.size())





torch.Size([8, 1, 28, 28])
torch.Size([1, 28, 28])
torch.Size([28, 28])



In [21]:

input_data = torch.unsqueeze(images[0], dim=0)
print(input_data.size())

output_data = layer(input_data)
output = output_data.data
output_arr = output.numpy()
output_arr.shape





torch.Size([1, 1, 28, 28])

Out[21]:

(1, 20, 24, 24)



In [22]:

plt.figure(figsize=(15, 30))

plt.subplot(131)
plt.title("input")
plt.imshow(input_image, 'gray')

plt.subplot(132)
plt.title("Weight")
plt.imshow(weight[0, 0, :, :], 'jet')

plt.subplot(133)
plt.title("Output")
plt.imshow(output_arr[0, 0, :, :], 'gray')
plt.show()















풀링 레이어(Pooling layers)¶

• F.max_pool2d
  • stride
  • kernel_size
• torch.nn.MaxPool2d 도 많이 사용



In [23]:

import torch.nn.functional as F

pool = F.max_pool2d(output, 2, 2)
pool.shape



Out[23]:

torch.Size([1, 20, 12, 12])





• MaxPool Layer는 weight가 없기 때문에 바로 numpy()변환 가능



In [24]:

pool_arr = pool.numpy()
pool_arr.shape



Out[24]:

(1, 20, 12, 12)



In [25]:

plt.figure(figsize=(10, 15))

plt.subplot(121)
plt.title("Input")
plt.imshow(input_image, 'gray')

plt.subplot(122)
plt.title("output")
plt.imshow(pool_arr[0, 0, :, :], 'gray')
plt.show()









선형 레이어(Linear layers)¶

1d만 가능하므로 .view()를 통해 1d로 펼쳐줘야함



In [26]:

flatten = input_image.view(1, 28 * 28)
flatten.shape



Out[26]:

torch.Size([1, 784])



In [27]:

lin = nn.Linear(784, 10)(flatten)
lin.shape



Out[27]:

torch.Size([1, 10])



In [28]:

lin



Out[28]:

tensor([[-0.5786,  0.0164, -0.2729,  0.3160,  0.2966, -0.1504, -0.1433,  0.4315,
          0.3447, -0.4311]], grad_fn=<AddmmBackward0>)



In [29]:

plt.imshow(lin.detach().numpy(), 'jet')
plt.colorbar()
plt.show()









비선형 활성화 (Non-linear Activations)¶

F.softmax와 같은 활성화 함수 등



In [30]:

with torch.no_grad():
  flatten = input_image.view(1, 28 * 28)
  lin = nn.Linear(784, 10)(flatten)
  softmax = F.softmax(lin, dim=1)

softmax



Out[30]:

tensor([[0.0863, 0.0940, 0.0719, 0.1549, 0.0652, 0.0969, 0.0874, 0.0771, 0.1595,
         0.1067]])



In [31]:

np.sum(softmax.numpy())



Out[31]:

1.0





F.relu

• ReLU 함수를 적용하는 레이어
• nn.ReLU로도 사용 가능



In [33]:

device = torch.device('cuda' if torch.cuda. is_available() else 'cpu')
inputs = torch.randn(4, 3, 28, 28).to(device)
inputs.shape



Out[33]:

torch.Size([4, 3, 28, 28])



In [34]:

layer = nn.Conv2d(3, 20, 5, 1).to(device)
output = F.relu(layer(inputs))
output.shape



Out[34]:

torch.Size([4, 20, 24, 24])





신경망 종류¶









모델 정의¶





nn.Module 상속 클래스 정의¶

• nn.Module을 상속받는 클래스 정의
• __init__(): 모델에서 사용될 모듈과 활성화 함수 등을 정의
• forward(): 모델에서 실행되어야 하는 연산을 정의



In [35]:

class Model(nn.Module):
  def __init__(self, inputs):
    super(Model, self).__init__()
    self.layer = nn.Linear(inputs, 1)
    self.activation = nn.Sigmoid()

  def forward(self, x):
    x = self.layer(x)
    x = self.activation(x)
    return x



In [36]:

model = Model(1)
print(list(model.children()))
print(list(model.modules()))





[Linear(in_features=1, out_features=1, bias=True), Sigmoid()]
[Model(
  (layer): Linear(in_features=1, out_features=1, bias=True)
  (activation): Sigmoid()
), Linear(in_features=1, out_features=1, bias=True), Sigmoid()]





nn.Sequential을 이용한 신경망 정의¶

• nn.Sequential 객체로 그 안에 각 모듈을 순차적으로 실행
• __init__()에서 사용할 네트워크 모델들을 nn.Sequential로 정의 가능
• forward()에서 실행되어야 할 계산을 가독성 높게 작성 가능



In [37]:

class Model(nn.Module):
  def __init__(self):
    super(Model, self).__init__()
    self.layer1 = nn.Sequential(
        nn.Conv2d(in_channels=3, out_channels=64, kernel_size=5),
        nn.ReLU(inplace=True),
        nn.MaxPool2d(2)
    )

    self.layer2 = nn.Sequential(
        nn.Conv2d(in_channels=64, out_channels=30, kernel_size=5),
        nn.ReLU(inplace=True),
        nn.MaxPool2d(2)
    )

    self.layer3 = nn.Sequential(
        nn.Linear(in_features=30*5*5, out_features=10, bias=True),
        nn.ReLU(inplace=True)
    )

    def forward(self, x):
      x = self.layer1(x)
      x = self.layer2(x)
      x = x.view(x.shape[0], -1)
      x = self.layer3(x)
      return x



In [38]:

model = Model()
print(list(model.children()))
print(list(model.modules()))





[Sequential(
  (0): Conv2d(3, 64, kernel_size=(5, 5), stride=(1, 1))
  (1): ReLU(inplace=True)
  (2): MaxPool2d(kernel_size=2, stride=2, padding=0, dilation=1, ceil_mode=False)
), Sequential(
  (0): Conv2d(64, 30, kernel_size=(5, 5), stride=(1, 1))
  (1): ReLU(inplace=True)
  (2): MaxPool2d(kernel_size=2, stride=2, padding=0, dilation=1, ceil_mode=False)
), Sequential(
  (0): Linear(in_features=750, out_features=10, bias=True)
  (1): ReLU(inplace=True)
)]
[Model(
  (layer1): Sequential(
    (0): Conv2d(3, 64, kernel_size=(5, 5), stride=(1, 1))
    (1): ReLU(inplace=True)
    (2): MaxPool2d(kernel_size=2, stride=2, padding=0, dilation=1, ceil_mode=False)
  )
  (layer2): Sequential(
    (0): Conv2d(64, 30, kernel_size=(5, 5), stride=(1, 1))
    (1): ReLU(inplace=True)
    (2): MaxPool2d(kernel_size=2, stride=2, padding=0, dilation=1, ceil_mode=False)
  )
  (layer3): Sequential(
    (0): Linear(in_features=750, out_features=10, bias=True)
    (1): ReLU(inplace=True)
  )
), Sequential(
  (0): Conv2d(3, 64, kernel_size=(5, 5), stride=(1, 1))
  (1): ReLU(inplace=True)
  (2): MaxPool2d(kernel_size=2, stride=2, padding=0, dilation=1, ceil_mode=False)
), Conv2d(3, 64, kernel_size=(5, 5), stride=(1, 1)), ReLU(inplace=True), MaxPool2d(kernel_size=2, stride=2, padding=0, dilation=1, ceil_mode=False), Sequential(
  (0): Conv2d(64, 30, kernel_size=(5, 5), stride=(1, 1))
  (1): ReLU(inplace=True)
  (2): MaxPool2d(kernel_size=2, stride=2, padding=0, dilation=1, ceil_mode=False)
), Conv2d(64, 30, kernel_size=(5, 5), stride=(1, 1)), ReLU(inplace=True), MaxPool2d(kernel_size=2, stride=2, padding=0, dilation=1, ceil_mode=False), Sequential(
  (0): Linear(in_features=750, out_features=10, bias=True)
  (1): ReLU(inplace=True)
), Linear(in_features=750, out_features=10, bias=True), ReLU(inplace=True)]





파이토치 사전학습 모델¶

• https://pytorch.org/vision/stable/models.html





모델 파라미터¶





손실 함수(Loss function)¶

• 예측 값과 실제 값 사이의 오차 측정
• 학습이 진행되면서 해당 과정이 얼마나 잘 되고 있는지 나타내는 지표
• 모델이 훈련되는 동안 최소화될 값으로 주어진 문제에 대한 성공 지표
• 손실 함수에 따른 결과를 통해 학습 파라미터를 조정
• 최적화 이론에서 최소화 하고자 하는 함수
• 미분 가능한 함수 사용
• 파이토치의 주요 손실 함수
  • torch.nn.BCELoss: 이진 분류를 위해 사용
  • torch.nn.CrossEntropyLoss: 다중 클래스 분류를 위해 사용
  • torch.nn.MSELoss: 회귀 모델에서 사용



In [39]:

criterion = nn.MSELoss()
criterion = nn.CrossEntropyLoss()





옵티마이저(Optimizer)¶

• 손실 함수를 기반으로 모델이 어떻게 업데이트되어야 하는지 결정 (특정 종류의 확률적 경사 하강법 구현)
• optimizer는 step()을 통해 전달받은 파라미터를 모델 업데이트
• 모든 옵티마이저의 기본으로 torch.optim.Optimizer(params, defaults) 클래스 사용
• zero_grad()를 이용해 옵티마이저에 사용된 파라미터들의 기울기를 0으로 설정
• torch.optim.lr_scheduler를 이용해 에포크(epochs)에 따라 학습률(learning rate) 조절
• 파이토치의 주요 옵티마이저: optim.Adadelta, optim.Adagrad, optim.Adam, optim.RMSprop, optim.SGD



In [39]:









학습률 스케줄러(Learning rate scheduler)¶

• 학습시 특정 조건에 따라 학습률을 조정하여 최적화 진행
• 일정 횟수 이상이 되면 학습률을 감소(decay)시키거나 전역 최소점(global minimum) 근처에 가면 학습률을 줄이는 등
• 파이토치의 학습률 스케줄러 종류
  • optim.lr_scheduler.LambdaLR: 람다(lambda) 함수를 이용해 그 결과를 학습률로 설정
  • optim.lr_scheduler.StepLR: 단계(step)마다 학습률을 감마(gamma) 비율만큼 감소
  • optim.lr_scheduler.MultiStepLR: StepLR과 비슷하지만 특정 단계가 아니라 지정된 에포크에만 감마 비율로 감소
  • optim.lr_scheduler.ExponentialLR: 에포크마다 이전 학습률에 감마만큼 곱함
  • optim.lr_scheduler.CosineAnnealingLR: 학습률을 코사인(cosine) 함수의 형태처럼 변화시켜 학습률일 커지기도 하고 작아지기도 함
  • optim.lr_scheduler.ReduceLROnPlateau: 학습이 잘되는지 아닌지에 따라 동적으로 학습률 변화





지표(Metrics)¶

• 모델의 학습과 테스트 단계를 모니터링



In [40]:

!pip install torchmetrics





Collecting torchmetrics
  Downloading torchmetrics-1.4.1-py3-none-any.whl.metadata (20 kB)
Requirement already satisfied: numpy>1.20.0 in /usr/local/lib/python3.10/dist-packages (from torchmetrics) (1.26.4)
Requirement already satisfied: packaging>17.1 in /usr/local/lib/python3.10/dist-packages (from torchmetrics) (24.1)
Requirement already satisfied: torch>=1.10.0 in /usr/local/lib/python3.10/dist-packages (from torchmetrics) (2.3.1+cu121)
Collecting lightning-utilities>=0.8.0 (from torchmetrics)
  Downloading lightning_utilities-0.11.6-py3-none-any.whl.metadata (5.2 kB)
Requirement already satisfied: setuptools in /usr/local/lib/python3.10/dist-packages (from lightning-utilities>=0.8.0->torchmetrics) (71.0.4)
Requirement already satisfied: typing-extensions in /usr/local/lib/python3.10/dist-packages (from lightning-utilities>=0.8.0->torchmetrics) (4.12.2)
Requirement already satisfied: filelock in /usr/local/lib/python3.10/dist-packages (from torch>=1.10.0->torchmetrics) (3.15.4)
Requirement already satisfied: sympy in /usr/local/lib/python3.10/dist-packages (from torch>=1.10.0->torchmetrics) (1.13.1)
Requirement already satisfied: networkx in /usr/local/lib/python3.10/dist-packages (from torch>=1.10.0->torchmetrics) (3.3)
Requirement already satisfied: jinja2 in /usr/local/lib/python3.10/dist-packages (from torch>=1.10.0->torchmetrics) (3.1.4)
Requirement already satisfied: fsspec in /usr/local/lib/python3.10/dist-packages (from torch>=1.10.0->torchmetrics) (2024.6.1)
Collecting nvidia-cuda-nvrtc-cu12==12.1.105 (from torch>=1.10.0->torchmetrics)
  Using cached nvidia_cuda_nvrtc_cu12-12.1.105-py3-none-manylinux1_x86_64.whl.metadata (1.5 kB)
Collecting nvidia-cuda-runtime-cu12==12.1.105 (from torch>=1.10.0->torchmetrics)
  Using cached nvidia_cuda_runtime_cu12-12.1.105-py3-none-manylinux1_x86_64.whl.metadata (1.5 kB)
Collecting nvidia-cuda-cupti-cu12==12.1.105 (from torch>=1.10.0->torchmetrics)
  Using cached nvidia_cuda_cupti_cu12-12.1.105-py3-none-manylinux1_x86_64.whl.metadata (1.6 kB)
Collecting nvidia-cudnn-cu12==8.9.2.26 (from torch>=1.10.0->torchmetrics)
  Using cached nvidia_cudnn_cu12-8.9.2.26-py3-none-manylinux1_x86_64.whl.metadata (1.6 kB)
Collecting nvidia-cublas-cu12==12.1.3.1 (from torch>=1.10.0->torchmetrics)
  Using cached nvidia_cublas_cu12-12.1.3.1-py3-none-manylinux1_x86_64.whl.metadata (1.5 kB)
Collecting nvidia-cufft-cu12==11.0.2.54 (from torch>=1.10.0->torchmetrics)
  Using cached nvidia_cufft_cu12-11.0.2.54-py3-none-manylinux1_x86_64.whl.metadata (1.5 kB)
Collecting nvidia-curand-cu12==10.3.2.106 (from torch>=1.10.0->torchmetrics)
  Using cached nvidia_curand_cu12-10.3.2.106-py3-none-manylinux1_x86_64.whl.metadata (1.5 kB)
Collecting nvidia-cusolver-cu12==11.4.5.107 (from torch>=1.10.0->torchmetrics)
  Using cached nvidia_cusolver_cu12-11.4.5.107-py3-none-manylinux1_x86_64.whl.metadata (1.6 kB)
Collecting nvidia-cusparse-cu12==12.1.0.106 (from torch>=1.10.0->torchmetrics)
  Using cached nvidia_cusparse_cu12-12.1.0.106-py3-none-manylinux1_x86_64.whl.metadata (1.6 kB)
Collecting nvidia-nccl-cu12==2.20.5 (from torch>=1.10.0->torchmetrics)
  Using cached nvidia_nccl_cu12-2.20.5-py3-none-manylinux2014_x86_64.whl.metadata (1.8 kB)
Collecting nvidia-nvtx-cu12==12.1.105 (from torch>=1.10.0->torchmetrics)
  Using cached nvidia_nvtx_cu12-12.1.105-py3-none-manylinux1_x86_64.whl.metadata (1.7 kB)
Requirement already satisfied: triton==2.3.1 in /usr/local/lib/python3.10/dist-packages (from torch>=1.10.0->torchmetrics) (2.3.1)
Collecting nvidia-nvjitlink-cu12 (from nvidia-cusolver-cu12==11.4.5.107->torch>=1.10.0->torchmetrics)
  Using cached nvidia_nvjitlink_cu12-12.6.20-py3-none-manylinux2014_x86_64.whl.metadata (1.5 kB)
Requirement already satisfied: MarkupSafe>=2.0 in /usr/local/lib/python3.10/dist-packages (from jinja2->torch>=1.10.0->torchmetrics) (2.1.5)
Requirement already satisfied: mpmath<1.4,>=1.1.0 in /usr/local/lib/python3.10/dist-packages (from sympy->torch>=1.10.0->torchmetrics) (1.3.0)
Downloading torchmetrics-1.4.1-py3-none-any.whl (866 kB)
   ━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ 866.2/866.2 kB 17.1 MB/s eta 0:00:00
Downloading lightning_utilities-0.11.6-py3-none-any.whl (26 kB)
Using cached nvidia_cublas_cu12-12.1.3.1-py3-none-manylinux1_x86_64.whl (410.6 MB)
Using cached nvidia_cuda_cupti_cu12-12.1.105-py3-none-manylinux1_x86_64.whl (14.1 MB)
Using cached nvidia_cuda_nvrtc_cu12-12.1.105-py3-none-manylinux1_x86_64.whl (23.7 MB)
Using cached nvidia_cuda_runtime_cu12-12.1.105-py3-none-manylinux1_x86_64.whl (823 kB)
Using cached nvidia_cudnn_cu12-8.9.2.26-py3-none-manylinux1_x86_64.whl (731.7 MB)
Using cached nvidia_cufft_cu12-11.0.2.54-py3-none-manylinux1_x86_64.whl (121.6 MB)
Using cached nvidia_curand_cu12-10.3.2.106-py3-none-manylinux1_x86_64.whl (56.5 MB)
Using cached nvidia_cusolver_cu12-11.4.5.107-py3-none-manylinux1_x86_64.whl (124.2 MB)
Using cached nvidia_cusparse_cu12-12.1.0.106-py3-none-manylinux1_x86_64.whl (196.0 MB)
Using cached nvidia_nccl_cu12-2.20.5-py3-none-manylinux2014_x86_64.whl (176.2 MB)
Using cached nvidia_nvtx_cu12-12.1.105-py3-none-manylinux1_x86_64.whl (99 kB)
Using cached nvidia_nvjitlink_cu12-12.6.20-py3-none-manylinux2014_x86_64.whl (19.7 MB)
Installing collected packages: nvidia-nvtx-cu12, nvidia-nvjitlink-cu12, nvidia-nccl-cu12, nvidia-curand-cu12, nvidia-cufft-cu12, nvidia-cuda-runtime-cu12, nvidia-cuda-nvrtc-cu12, nvidia-cuda-cupti-cu12, nvidia-cublas-cu12, lightning-utilities, nvidia-cusparse-cu12, nvidia-cudnn-cu12, nvidia-cusolver-cu12, torchmetrics
Successfully installed lightning-utilities-0.11.6 nvidia-cublas-cu12-12.1.3.1 nvidia-cuda-cupti-cu12-12.1.105 nvidia-cuda-nvrtc-cu12-12.1.105 nvidia-cuda-runtime-cu12-12.1.105 nvidia-cudnn-cu12-8.9.2.26 nvidia-cufft-cu12-11.0.2.54 nvidia-curand-cu12-10.3.2.106 nvidia-cusolver-cu12-11.4.5.107 nvidia-cusparse-cu12-12.1.0.106 nvidia-nccl-cu12-2.20.5 nvidia-nvjitlink-cu12-12.6.20 nvidia-nvtx-cu12-12.1.105 torchmetrics-1.4.1



In [41]:

import torchmetrics

preds = torch.rand(10, 5).softmax(dim=-1)
target = torch.randint(5, (10, ))
print(preds, target)

acc = torchmetrics.functional.accuracy(preds, target, task="multiclass", num_classes=5)
print(acc)





tensor([[0.1885, 0.2010, 0.1557, 0.1867, 0.2681],
        [0.1426, 0.1439, 0.2550, 0.3109, 0.1475],
        [0.1143, 0.1913, 0.2336, 0.2436, 0.2172],
        [0.1712, 0.1424, 0.1882, 0.2578, 0.2404],
        [0.1272, 0.2463, 0.2691, 0.1844, 0.1730],
        [0.1754, 0.1645, 0.1275, 0.2694, 0.2633],
        [0.1431, 0.2439, 0.2712, 0.1571, 0.1847],
        [0.2170, 0.2167, 0.1969, 0.2300, 0.1394],
        [0.2083, 0.2762, 0.1354, 0.2309, 0.1492],
        [0.2302, 0.2255, 0.2538, 0.1488, 0.1417]]) tensor([3, 0, 1, 4, 2, 3, 3, 2, 0, 2])
tensor(0.3000)



In [42]:

metric = torchmetrics.Accuracy(task="multiclass", num_classes=5)

n_batches = 10
for i in range(n_batches):
  preds = torch.rand(10, 5).softmax(dim=1)
  target = torch.randint(5, (10, ))

  acc = torchmetrics.functional.accuracy(preds, target, task="multiclass", num_classes=5)
  print(acc)





tensor(0.1000)
tensor(0.1000)
tensor(0.1000)
tensor(0.1000)
tensor(0.2000)
tensor(0.1000)
tensor(0.3000)
tensor(0.1000)
tensor(0.4000)
tensor(0.3000)





선형 회귀 모델(Linear Regression Model)¶





데이터 생성¶



In [43]:

X = torch.randn(200, 1) * 10
y = X + 3 * torch.randn(200, 1)
plt.scatter(X.numpy(), y.numpy())
plt.ylabel('y')
plt.xlabel('x')
plt.grid()
plt.show()









모델 정의 및 파라미터¶



In [44]:

class LinearRegressionModel(nn.Module):
  def __init__(self):
    super(LinearRegressionModel, self).__init__()
    self.linear = nn.Linear(1, 1)

  def forward(self, x):
    pred = self.linear(x)
    return pred



In [45]:

model = LinearRegressionModel()
print(model)
print(list(model.parameters()))





LinearRegressionModel(
  (linear): Linear(in_features=1, out_features=1, bias=True)
)
[Parameter containing:
tensor([[0.7913]], requires_grad=True), Parameter containing:
tensor([-0.3978], requires_grad=True)]



In [46]:

w, b = model.parameters()

w1, b1 = w[0][0].item(), b[0].item()
x1 = np.array([-30, 30])
y1 = w1 * x1 + b1

plt.plot(x1, y1, 'r')
plt.scatter(X, y)
plt.grid()
plt.show()









손실 함수 및 옵티마이저¶



In [47]:

import torch.optim as optim
import matplotlib.pyplot as plt
criterion = nn.MSELoss()
optimizer = optim.SGD(model.parameters(), lr=0.001)





모델 학습¶



In [48]:

epochs = 100
losses = []

for epoch in range(epochs):
  optimizer.zero_grad()

  y_pred = model(X)
  loss = criterion(y_pred, y)
  losses.append(loss.item())
  loss.backward()

  optimizer.step()



In [49]:

plt.plot(range(epochs), losses)
plt.ylabel('Loss')
plt.xlabel('Epoch')
plt.show()







In [50]:

w1, b1 = w[0][0].item(), b[0].item()
x1 = np.array([-30, 30])
y1 = w1 * x1 + b1

plt.plot(x1, y1, 'r')
plt.scatter(X, y)
plt.grid()
plt.show()









FashionMNIST 분류 모델¶





GPU 설정



In [51]:

device = torch.device('cuda' if torch.cuda. is_available() else 'cpu')
device



Out[51]:

device(type='cuda')





데이터 로드¶









In [52]:

transform = transforms.Compose(([transforms.ToTensor(),
                                transforms.Normalize((0.5, ), (0.5, ))]))



In [53]:

trainset = datasets.FashionMNIST(root='/content/',
                                 train=True, download=True,
                                 transform=transform)
testset = datasets.FashionMNIST(root='/content/',
                                 train=False, download=True,
                                 transform=transform)





Downloading http://fashion-mnist.s3-website.eu-central-1.amazonaws.com/train-images-idx3-ubyte.gz
Downloading http://fashion-mnist.s3-website.eu-central-1.amazonaws.com/train-images-idx3-ubyte.gz to /content/FashionMNIST/raw/train-images-idx3-ubyte.gz



100%|██████████| 26421880/26421880 [00:02<00:00, 12384588.47it/s]



Extracting /content/FashionMNIST/raw/train-images-idx3-ubyte.gz to /content/FashionMNIST/raw

Downloading http://fashion-mnist.s3-website.eu-central-1.amazonaws.com/train-labels-idx1-ubyte.gz
Downloading http://fashion-mnist.s3-website.eu-central-1.amazonaws.com/train-labels-idx1-ubyte.gz to /content/FashionMNIST/raw/train-labels-idx1-ubyte.gz



100%|██████████| 29515/29515 [00:00<00:00, 201294.13it/s]



Extracting /content/FashionMNIST/raw/train-labels-idx1-ubyte.gz to /content/FashionMNIST/raw

Downloading http://fashion-mnist.s3-website.eu-central-1.amazonaws.com/t10k-images-idx3-ubyte.gz
Downloading http://fashion-mnist.s3-website.eu-central-1.amazonaws.com/t10k-images-idx3-ubyte.gz to /content/FashionMNIST/raw/t10k-images-idx3-ubyte.gz



100%|██████████| 4422102/4422102 [00:01<00:00, 3720955.07it/s]



Extracting /content/FashionMNIST/raw/t10k-images-idx3-ubyte.gz to /content/FashionMNIST/raw

Downloading http://fashion-mnist.s3-website.eu-central-1.amazonaws.com/t10k-labels-idx1-ubyte.gz
Downloading http://fashion-mnist.s3-website.eu-central-1.amazonaws.com/t10k-labels-idx1-ubyte.gz to /content/FashionMNIST/raw/t10k-labels-idx1-ubyte.gz



100%|██████████| 5148/5148 [00:00<00:00, 19313306.79it/s]



Extracting /content/FashionMNIST/raw/t10k-labels-idx1-ubyte.gz to /content/FashionMNIST/raw





In [54]:

train_loader = DataLoader(trainset, batch_size=128, shuffle=True, num_workers=2)
test_loader = DataLoader(testset, batch_size=128, shuffle=False, num_workers=2)



In [55]:

images, labels = next(iter(train_loader))
images.shape, labels.shape



Out[55]:

(torch.Size([128, 1, 28, 28]), torch.Size([128]))



In [56]:

labels_map = {
    0: 'T-Shirt',
    1: 'Trouser',
    2: 'Pullover',
    3: 'Dress',
    4: 'Coat',
    5: 'Sandal',
    6: 'Shirt',
    7: 'Sneaker',
    8: 'Bag',
    9: 'Ankle Boot'
}

figure = plt.figure(figsize=(12, 12))
cols, rows = 4, 4
for i in range(1, cols * rows + 1):
  image = images[i].squeeze()
  label_idx = labels[i].item()
  label = labels_map[label_idx]

  figure.add_subplot(rows, cols, i)
  plt.title(label)
  plt.axis('off')
  plt.imshow(image, cmap='gray')

plt.show()









모델 정의 및 파라미터¶



In [57]:

class NeuralNet(nn.Module):
  def __init__(self):
    super(NeuralNet, self).__init__()

    self.conv1 = nn.Conv2d(1, 6, 3)
    self.conv2 = nn.Conv2d(6, 16, 3)
    self.fc1 = nn.Linear(16 * 5 * 5, 120)
    self.fc2 = nn.Linear(120, 84)
    self.fc3 = nn.Linear(84, 10)

  def forward(self, x):
    x = F.max_pool2d(F.relu(self.conv1(x)), (2, 2))
    x = F.max_pool2d(F.relu(self.conv2(x)), 2)
    x = x.view(-1, self.num_flat_features(x))
    x = F.relu(self.fc1(x))
    x = F.relu(self.fc2(x))
    x = self.fc3(x)
    return x

  def num_flat_features(self, x):
    size = x.size()[1:]
    num_features = 1
    for s in size:
      num_features *= s

    return num_features

net = NeuralNet()
print(net)





NeuralNet(
  (conv1): Conv2d(1, 6, kernel_size=(3, 3), stride=(1, 1))
  (conv2): Conv2d(6, 16, kernel_size=(3, 3), stride=(1, 1))
  (fc1): Linear(in_features=400, out_features=120, bias=True)
  (fc2): Linear(in_features=120, out_features=84, bias=True)
  (fc3): Linear(in_features=84, out_features=10, bias=True)
)



In [58]:

params = list(net.parameters())
print(len(params))
print(params[0].size())





10
torch.Size([6, 1, 3, 3])



In [59]:

input = torch.randn(1, 1, 28, 28)
out = net(input)
print(out)





tensor([[-0.0871,  0.1913, -0.0433, -0.0459,  0.0379,  0.0232,  0.0585, -0.0060,
         -0.0409,  0.0344]], grad_fn=<AddmmBackward0>)





손실함수와 옵티마이저¶



In [60]:

import torch.optim as optim
criterion = nn.CrossEntropyLoss()
optimizer = optim.SGD(net.parameters(), lr=0.001, momentum=0.9)





모델 학습¶





배치수 확인



In [61]:

total_batch = len(train_loader)
print(total_batch)





469



In [63]:

for epoch in range(10):

  running_loss = 0.0

  for i, data in enumerate(train_loader, 0):
    inputs, labels = data

    optimizer.zero_grad()

    outputs = net(inputs)
    loss = criterion(outputs, labels)
    loss.backward()
    optimizer.step()

    running_loss += loss.item()

    if i % 100 == 99:
      print('Epoch : {}, Iter: {}, Loss: {}'.format(epoch+1, i+1, running_loss/2000))
      running_loss = 0.0





Epoch : 1, Iter: 100, Loss: 0.11502504658699035
Epoch : 1, Iter: 200, Loss: 0.11446980822086335
Epoch : 1, Iter: 300, Loss: 0.11365943157672882
Epoch : 1, Iter: 400, Loss: 0.11183640277385712
Epoch : 2, Iter: 100, Loss: 0.09142237794399262
Epoch : 2, Iter: 200, Loss: 0.05995461705327034
Epoch : 2, Iter: 300, Loss: 0.04482015699148178
Epoch : 2, Iter: 400, Loss: 0.040373206377029416
Epoch : 3, Iter: 100, Loss: 0.03683351635932922
Epoch : 3, Iter: 200, Loss: 0.03587702712416649
Epoch : 3, Iter: 300, Loss: 0.03434920717775822
Epoch : 3, Iter: 400, Loss: 0.0334646110534668
Epoch : 4, Iter: 100, Loss: 0.032616506576538085
Epoch : 4, Iter: 200, Loss: 0.03125044773519039
Epoch : 4, Iter: 300, Loss: 0.032371528938412664
Epoch : 4, Iter: 400, Loss: 0.030714029729366304
Epoch : 5, Iter: 100, Loss: 0.03034444074332714
Epoch : 5, Iter: 200, Loss: 0.029525935858488082
Epoch : 5, Iter: 300, Loss: 0.02892155006527901
Epoch : 5, Iter: 400, Loss: 0.028165019646286964
Epoch : 6, Iter: 100, Loss: 0.028564947932958603
Epoch : 6, Iter: 200, Loss: 0.027898967817425728
Epoch : 6, Iter: 300, Loss: 0.02741909073293209
Epoch : 6, Iter: 400, Loss: 0.0271149540245533
Epoch : 7, Iter: 100, Loss: 0.026726744800806047
Epoch : 7, Iter: 200, Loss: 0.026773720502853395
Epoch : 7, Iter: 300, Loss: 0.026580355644226075
Epoch : 7, Iter: 400, Loss: 0.02655362620949745
Epoch : 8, Iter: 100, Loss: 0.026225275576114655
Epoch : 8, Iter: 200, Loss: 0.025761234283447267
Epoch : 8, Iter: 300, Loss: 0.024994379952549935
Epoch : 8, Iter: 400, Loss: 0.024353671863675118
Epoch : 9, Iter: 100, Loss: 0.02474271248281002
Epoch : 9, Iter: 200, Loss: 0.02464385850727558
Epoch : 9, Iter: 300, Loss: 0.02411820262670517
Epoch : 9, Iter: 400, Loss: 0.024146224185824395
Epoch : 10, Iter: 100, Loss: 0.02376581420004368
Epoch : 10, Iter: 200, Loss: 0.023817880272865296
Epoch : 10, Iter: 300, Loss: 0.023328649133443832
Epoch : 10, Iter: 400, Loss: 0.02291729202866554





모델의 저장 및 로드¶

• torch.save: net.state_dict()를 저장
• torch.load: load_state_dict로 모델을 로드



In [64]:

PATH = './fashion_mnist.pth'
torch.save(net.state_dict(),PATH)



In [65]:

net = NeuralNet()
net.load_state_dict(torch.load(PATH))



Out[65]:

<All keys matched successfully>



In [66]:

net.parameters



Out[66]:

torch.nn.modules.module.Module.parameters
def parameters(recurse: bool=True) -> Iterator[Parameter]

/usr/local/lib/python3.10/dist-packages/torch/nn/modules/module.pyReturn an iterator over module parameters.

This is typically passed to an optimizer.

Args:
    recurse (bool): if True, then yields parameters of this module
        and all submodules. Otherwise, yields only parameters that
        are direct members of this module.

Yields:
    Parameter: module parameter

Example::

    >>> # xdoctest: +SKIP("undefined vars")
    >>> for param in model.parameters():
    >>>     print(type(param), param.size())
    <class 'torch.Tensor'> (20L,)
    <class 'torch.Tensor'> (20L, 1L, 5L, 5L)





모델 테스트¶



In [67]:

def imshow(image):
  image = image / 2 + 0.5
  npimg = image.numpy()

  fig = plt.figure(figsize=(16, 8))
  plt.imshow(np.transpose(npimg, (1, 2, 0)))
  plt.show()



In [69]:

import torchvision

dataiter = iter(test_loader)
images, labels = next(dataiter)

imshow(torchvision.utils.make_grid(images[:6]))







In [70]:

outputs = net(images)

_, predicted = torch.max(outputs, 1)
print(predicted)





tensor([9, 2, 1, 1, 6, 1, 2, 6, 5, 7, 4, 5, 5, 3, 4, 1, 2, 6, 8, 0, 2, 7, 7, 5,
        1, 2, 6, 0, 9, 4, 8, 8, 3, 3, 8, 0, 7, 5, 7, 9, 0, 1, 0, 9, 6, 7, 2, 1,
        2, 6, 6, 2, 5, 8, 4, 2, 8, 6, 8, 0, 7, 7, 8, 5, 1, 1, 0, 4, 7, 8, 7, 0,
        2, 6, 4, 3, 1, 2, 8, 4, 1, 8, 5, 9, 5, 0, 3, 2, 0, 2, 5, 3, 6, 7, 1, 8,
        0, 1, 4, 2, 3, 4, 7, 6, 7, 8, 5, 9, 9, 4, 2, 5, 7, 0, 5, 2, 8, 4, 7, 8,
        0, 0, 9, 9, 3, 0, 8, 4])



In [71]:

print(''.join('{}. '.format(labels_map[int(predicted[j].numpy())]) for j in range(6)))





Ankle Boot. Pullover. Trouser. Trouser. Shirt. Trouser.



In [72]:

correct = 0
total = 0

with torch.no_grad():
  for data in test_loader:
    images, labels = data
    outputs = net(images)
    _, predicted = torch.max(outputs.data, 1)
    total += labels.size(0)
    correct += (predicted == labels).sum().item()

print(100 * correct / total)





81.81
